• 3.08 Axle Ratio
• 4 Speakers
• 40/60 Split Bench w/Driver's Lumbar
• ABS brakes
• AM/FM radio
• Aero Power Chrome Exterior Mirrors
• Alloy wheels
• Bumpers: chrome
• Cassette
• Chrome Rear Step Bumper
• Color-Keyed Carpeting
• Convenience Group
• Driver door bin
• Dual front impact airbags
• Flareside Box
• Front Center Armrest w/Storage
• Front anti-roll bar
• Front reading lights
• Front wheel independent suspension
• Passenger cancellable airbag
• Passenger door bin
• Passenger vanity mirror
• Payload Package #1
• Pickup Box Security Group
• Polished Aluminum Wheels
• Power Convenience Group
• Power Door Locks
• Power Windows
• Power door mirrors
• Power steering
• Power windows
• Rear Storage Bin
• Rear step bumper
• SecuriLock
• Speed Control w/Tilt Steering Wheel
• Speed control
• Tachometer
• Tilt steering wheel
• Variably intermittent wipers
• Voltmeter

• Auxiliary pwr point in instrument panel
• Back panel cover
• Black vinyl floor covering
• Cloth bench seat
• Cloth sun visors w/LH strap, RH mirror
• Color-keyed headliner
• Dome light w/dual map lights
• Dual instrument-panel-mounted cupholders
• Electronic AM/FM stereo radio-inc: digital clock, (2) speakers
• Securilock anti-theft ignition
• Underhood light
• Vinyl upper door trim w/integral armrest, door pull handle, map pocket
• Voltmeter, oil pressure/temp/speedometer/fuel gauges

• 16" x 7.0" 5-hole argent styled steel wheels w/chrome hubs
• 25.0 gallon fuel tank
• 3400# capacity twin forged SLA front axle
• 3800# capacity rear axle
• 4-pin trailer tow wiring
• 5600# GVWR/1650# maximum payload
• 58 amp-hour (540 CCA) maintenance-free battery w/battery-saver feature
• 6-1/2' pickup box w/tie-down hooks
• 95 amp alternator
• Front coil/rear leaf spring suspension
• Full-size spare tire
• Gas-pressurized shock absorbers
• P235/70R16SL all-season SBR BSW tires
• Pwr front disc/rear drum brakes
• Pwr steering
• Rear wheel drive
• Rear-wheel anti-lock brake system
• Underframe, crank-type spare tire carrier

• Driver & front passenger air bags w/passenger-side deactivation switch
• Rear-wheel anti-lock brake system
• Seat belts w/adjustable shoulder
• Side door intrusion beams

4.6L EFI OHC V8 "TRITON" ENGINE

• fail-safe cooling system
• 130 amp alternator

• Mileage
• EPA Fuel Economy Est - City (MPG): 14
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 19
• EPA Fuel Economy Est - Hwy (MPG): 21
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 130
• Maximum Alternator Capacity (amps): 95
• Maximum Alternator Watts: 1425
• Cooling System
• Total Cooling System Capacity (qts): 20.6
• Total Cooling System Capacity (qts): 20.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2500
• Gross Axle Wt Rating - Rear (lbs): 3500
• Gross Axle Wt Rating - Rear (lbs): 3200
• Curb Weight - Front (lbs): 2228
• Curb Weight - Rear (lbs): 1721
• Gross Vehicle Weight Rating Cap (lbs): 5600
• Gross Combined Wt Rating (lbs): 6,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4,000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 600
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 4,000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1,000
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2500
• Spring Capacity - Rear (lbs): 3500
• Spring Capacity - Rear (lbs): 3200
• Axle Type - Front: Twin Forged SLA
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3400
• Axle Capacity - Rear (lbs): 3800
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): 30
• Shock Absorber Diameter - Rear (mm): 30
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1 x - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: T52
• Rear Tire Order Code: T52
• Spare Tire Order Code: T52
• Front Tire Size: P235/70R16SL
• Rear Tire Size: P235/70R16SL
• Spare Tire Size: P235/70R16SL
• Front Tire Capacity (lbs): 1804
• Rear Tire Capacity (lbs): 1804
• Spare Tire Capacity (lbs): 1804
• Revolutions/Mile @ 45 mph - Front: 719
• Revolutions/Mile @ 45 mph - Rear: 719
• Revolutions/Mile @ 45 mph - Spare: 719
• Wheels
• Front Wheel Size (in): 16.0 x 7.0
• Rear Wheel Size (in): 16.0 x 7.0
• Spare Wheel Size (in): 16.0 x 7.0
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 14
• Turning Diameter - Curb to Curb (ft): 40.5
• Turning Diameter - Wall to Wall (ft): 42.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.9
• Length, Overall w/o rear bumper (in): 205.9
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 72.7
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 48.8
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 32.5
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 62.1 @ Belt
• Cargo Box Width @ Floor (in): 49.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 18.6
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 50.2
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 63.8
• Front Hip Room (in): 61.3
• Summary

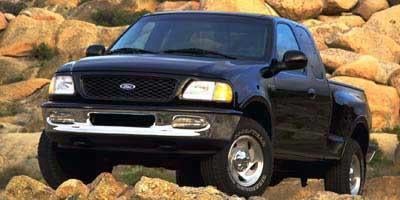

• Vehicle Name: Ford F-150
• Body Style: Reg Cab 6.5' Flareside
• Body Code: 119.9" WB
