• 15" x 7" Aluminum Wheels
• 15" x 7" Steel Wheels
• 3.42 Rear Axle Ratio
• 4 Speakers
• 4-Wheel Disc Brakes
• ABS brakes
• AM/FM Stereo w/CD/Seek & Scan
• AM/FM Stereo w/Seek & Scan/Clock
• AM/FM radio
• Analog Tachometer
• Bumpers: body-color
• Convenience Equipment
• Convenience Package
• Deluxe Cloth Seat Trim
• Driver door bin
• Dual Electric Outside Rear-View Mirrors
• Dual front impact airbags
• Electronic Shift 2-Speed Transfer Case
• Front 60/40 Reclining Split Bench Seat
• Front Air Conditioning
• Front Bucket Seats
• Front Center Armrest w/Storage
• Front Reclining Bucket Seats
• Front anti-roll bar
• Front beverage holders
• Front reading lights
• Front wheel independent suspension
• Fully automatic headlights
• Heavy Duty Suspension Package
• Leather-Wrapped Steering Wheel
• Passenger cancellable airbag
• Passenger door bin
• Power Windows
• Power steering
• Programmable Power Door Locks
• Rear step bumper
• Remote Keyless Entry
• SLS Decor
• SLS Super Spec Group
• Speed-sensing steering
• Split folding rear seat
• Tachometer
• Third Door
• Variably intermittent wipers
• Voltmeter
• Wideside Body

• (2) Dash-mounted pwr outlets
• Color-keyed vinyl floor mats
• Deluxe black 4-spoke steering wheel
• Deluxe cloth high-back reclining bucket seats w/floor console, driver side manual lumbar adjuster, passenger side easy-entry feature
• Door trim panels w/pocket, cloth upper/carpeted lower insert, driver coin holder
• Dual coat hooks
• ETR AM/FM stereo-inc: seek-scan, digital clock, 4 speakers
• Fixed mast antenna
• Folding rear jump seats
• Full-coverage, color-keyed cloth headliner
• Full-floor color-keyed carpeting
• Glove box w/door-operated light
• Heater w/windshield/side window defoggers
• Instrument cluster-inc: speedometer, odometer, trip odometer, fuel/voltmeter/ temp/oil pressure gauges
• Instrument panel cigarette lighter
• Padded armrests integral w/door panels
• Padded color-keyed cloth sunshades w/passenger vanity mirror
• Passenger assist handle
• Passlock II theft deterrent security system
• Rearview mirror
• Tachometer
• Turn signal reminder chime

• (2) Front tow hooks
• (2) Load tie-down loops
• 100 amp alternator
• 15" x 7" gray steel wheels w/gray lug-type center caps
• 18 gallon fuel tank
• 4-wheel anti-lock brake system
• 5150# GVWR (2800 front/2700 rear), springs (2800 front/2700 rear), axles (2800 front/2900 rear)
• 525 CCA battery w/rundown protection
• Aluminized stainless steel exhaust system
• Electronic shift transfer case
• Four wheel drive
• Front stabilizer bar
• Independent front suspension w/torsion bars
• Leaf spring rear suspension
• P235/70R15 all-season SBR BSW tires
• Pwr front/rear disc brakes
• Pwr steering
• Retained accessory power
• Semi-floating rear axle
• Single, two-sided key
• T155/90D16 compact spare tire w/16" x 4" steel wheel
• Tools-inc: mechanical jack, wheel wrench w/cover located in storage compartment on floor behind front seat
• Welded double-wall construction in box sides/tailgate w/steel floor, 2-tier loading capabilities
• Winch-type spare tire carrier mounted under frame at rear

• 4-wheel anti-lock brake system
• Child safety seat anchors
• Color-keyed manual lap safety belt, front center seat/rear seat positions
• Color-keyed manual lap/shoulder safety belts, outboard front seat positions
• Daytime running lamps w/auto headlamp control
• Driver & front passenger airbags w/passenger suppression switch on instrument panel
• Dual high/low note electric horn
• Side door guard beams

4.3L (262) SFI V6 (VORTEC) ENGINE

• (STD)

• Cloth Seats

• Mileage
• EPA Fuel Economy Est - City (MPG): 15
• EPA Fuel Economy Est - Hwy (MPG): 18
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 525
• Maximum Alternator Capacity (amps): 100
• Maximum Alternator Watts: 1200
• Cooling System
• Total Cooling System Capacity (qts): 12.1
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2800
• Gross Axle Wt Rating - Rear (lbs): 2700
• Curb Weight - Front (lbs): 2411
• Curb Weight - Rear (lbs): 1416
• Gross Vehicle Weight Rating Cap (lbs): 5150
• Gross Combined Wt Rating (lbs): 9500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 3500
• Dead Weight Hitch - Max Tongue Wt. (lbs): 350
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2800
• Spring Capacity - Rear (lbs): 2700
• Axle Type - Front: Independent GM
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2800
• Axle Capacity - Rear (lbs): 2900
• Axle Ratio (:1) - Front: 3.42
• Axle Ratio (:1) - Rear: 3.42
• Shock Absorber Diameter - Front (mm): 32
• Shock Absorber Diameter - Rear (mm): 32
• Stabilizer Bar Diameter - Front (in): 1.10
• Brakes
• Brake Type: Power
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 10.8 x 1.14
• Rear Brake Rotor Diam x Thickness (in): 11.6 x 0.79
• Tires
• Front Tire Order Code: QBF
• Rear Tire Order Code: QBF
• Front Tire Size: P235/70R15
• Rear Tire Size: P235/70R15
• Spare Tire Size: T155/90D16
• Front Tire Capacity (lbs): 1643
• Rear Tire Capacity (lbs): 1643
• Spare Tire Capacity (lbs): 1453
• Revolutions/Mile @ 45 mph - Front: 743
• Revolutions/Mile @ 45 mph - Rear: 743
• Revolutions/Mile @ 45 mph - Spare: 788
• Wheels
• Front Wheel Size (in): 15 x 7
• Rear Wheel Size (in): 15 x 7
• Spare Wheel Size (in): 16 x 4
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 16
• Steering Ratio (:1), At Lock: 13
• Turning Diameter - Curb to Curb (ft): 41.6
• Turning Diameter - Wall to Wall (ft): 43.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 18
• Fuel Tank Location: Inboard LH Frame
• Exterior Dimensions
• Wheelbase (in): 122.9
• Length, Overall w/o rear bumper (in): 205.3
• Width, Max w/o mirrors (in): 67.9
• Height, Overall (in): 63.4
• Overhang, Front (in): 35.2
• Overhang, Rear w/o bumper (in): 46.0
• Front Bumper to Back of Cab (in): 120.7
• Cab to Axle (in): 37.4
• Ground to Top of Load Floor (in): 27.2
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 8.5
• Ground Clearance, Rear (in): 7.5
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 72.8
• Cargo Box Width @ Top, Rear (in): 54.6
• Cargo Box Width @ Floor (in): 54.6
• Cargo Box Width @ Wheelhousings (in): 40.3
• Cargo Box (Area) Height (in): 17.1
• Tailgate Width (in): 54.6
• Cargo Volume (ft³): 39.4
• Ext'd Cab Cargo Volume (ft³): 22.1
• Interior Dimensions
• Passenger Capacity: 4
• Front Head Room (in): 39.5
• Front Leg Room (in): 42.4
• Front Shoulder Room (in): 56.9
• Front Hip Room (in): 51.6
• Second Head Room (in): N/A
• Second Leg Room (in): N/A
• Second Shoulder Room (in): N/A
• Second Hip Room (in): N/A
• Summary

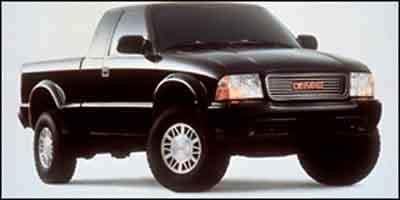

• Vehicle Name: GMC Sonoma
• Body Style: Ext Cab 6' Wideside SLS
• Body Code: E63
